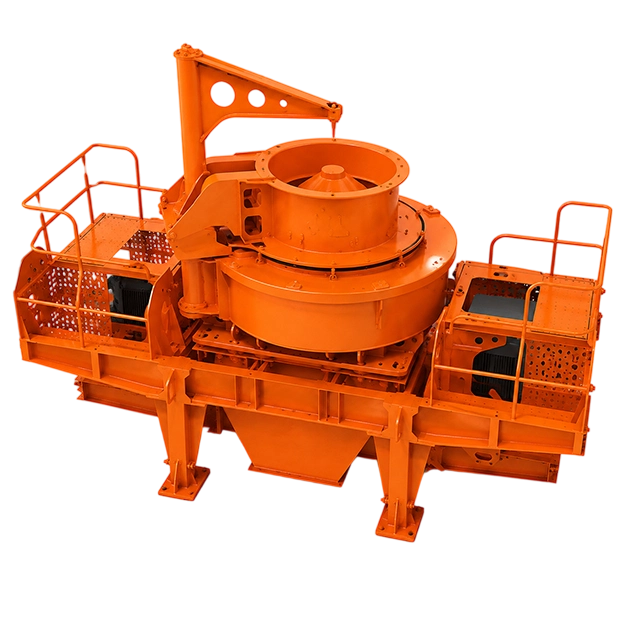

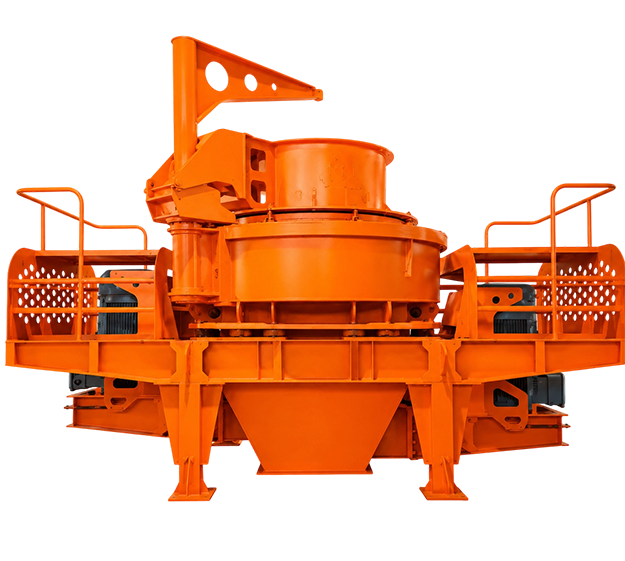

立轴冲击式破碎机系列

VERTICAL SHAFTIMPACT CRUSHER

立轴冲击式破碎机系列是将独特的转子设计、耐磨材料及破碎设备设计完美的结合,这种结合不但提高了生产能力和产品质量,而且降低了生产成本和磨损件的消耗。在细碎、制砂和石料整型等应用中表现出来无与伦比的优越性能。

The vertical shaft impact crusher series perfectly integrates a unique rotor design, wear-resistant materials, and advanced crushing equipment engineering. This combination not only enhances production capacity and product quality but also reduces production costs and the consumption of wear parts, delivering unparalleled performance in applications such as fine crushing, sand making, and aggregate shaping.

PRODUCT PARAMETERS

产品参数

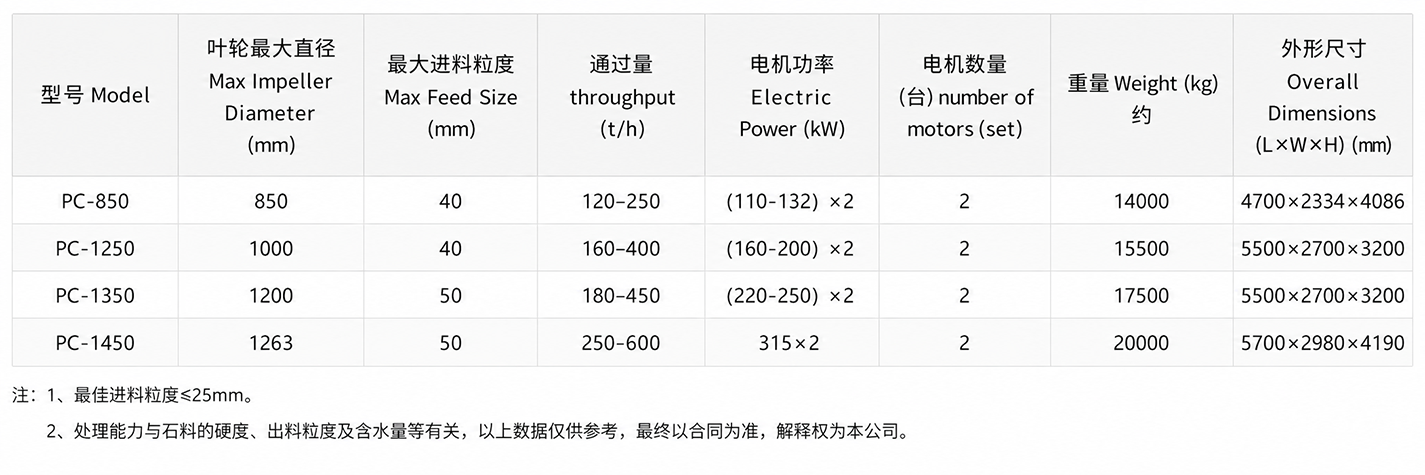

基本技术参数   PRINCIPAL TECHNICAL DATA
型号
Model
叶轮最大直径
Max Impeller Diameter
(mm)
最大进料粒度
Max Feed Size
(mm)
通过量
Throughput
(t/h)
电机功率
Electric Power
(kW)
电机数量(台)
Number of Motors
(set)
重量
Weight
(kg)
约
外形尺寸
Overall Dimensions
(L×W×H)
(mm)
PC-850 850 40 120-250 (110-132) ×2 2 14000 4700×2334×4086
PC-1250 1000 40 160-400 (160-200) ×2 2 15500 5500×2700×3200
PC-1350 1200 50 180-450 (220-250) ×2 2 17500 5500×2700×3200
PC-1450 1263 50 250-600 315×2 2 20000 5700×2980×4190
注:1、最佳进料粒度≤25mm。
2、处理能力与石料的硬度、出料粒度及含水量等有关,以上数据仅供参考,最终以合同为准,解释权为本公司。
