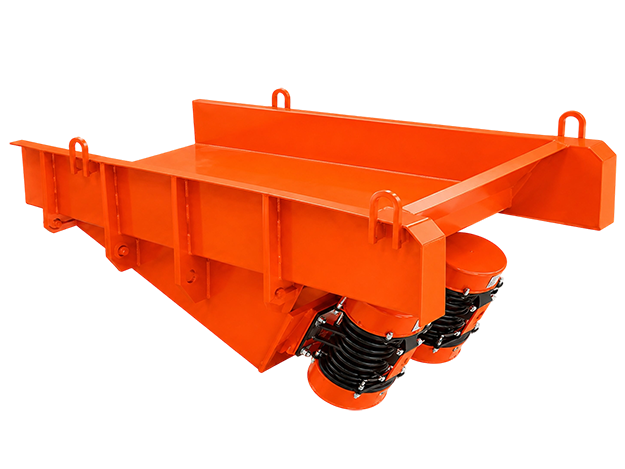

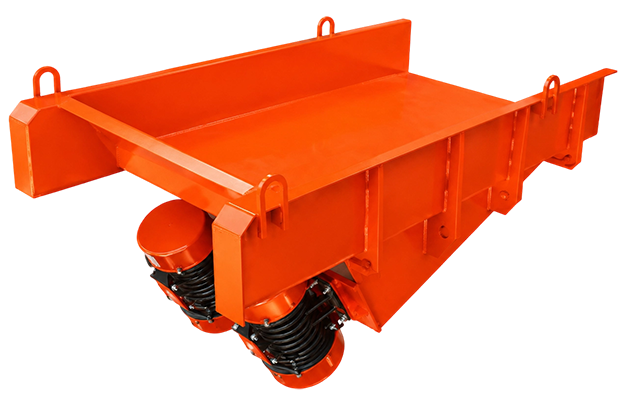

SUSPENDED VIBRATING FEEDER
GZG系列重型给料机是一种以高效激振器(电机)为激振源的新型振动给料设备,广泛应用于冶金、矿山、电力、食品、粮食等行业,用以把破碎机、分选机械、包装机械中的块状、颗粒状及粉状物料从贮料仓或漏斗中均匀连续或定量地给到受料装置去。
The GZG series heavy-duty feeder is a new type of vibrating feeding equipment that utilizes a high-efficiency vibrator (motor) as its excitation source. Widely used in industries such as metallurgy, mining, electric power, food processing, and grain handling, it serves to feed lump, granular, and powdered materials—destined for crushers, sorting machinery, or packaging equipment—from storage bins or hoppers to receiving devices in a manner that is uniform, continuous, or metered.

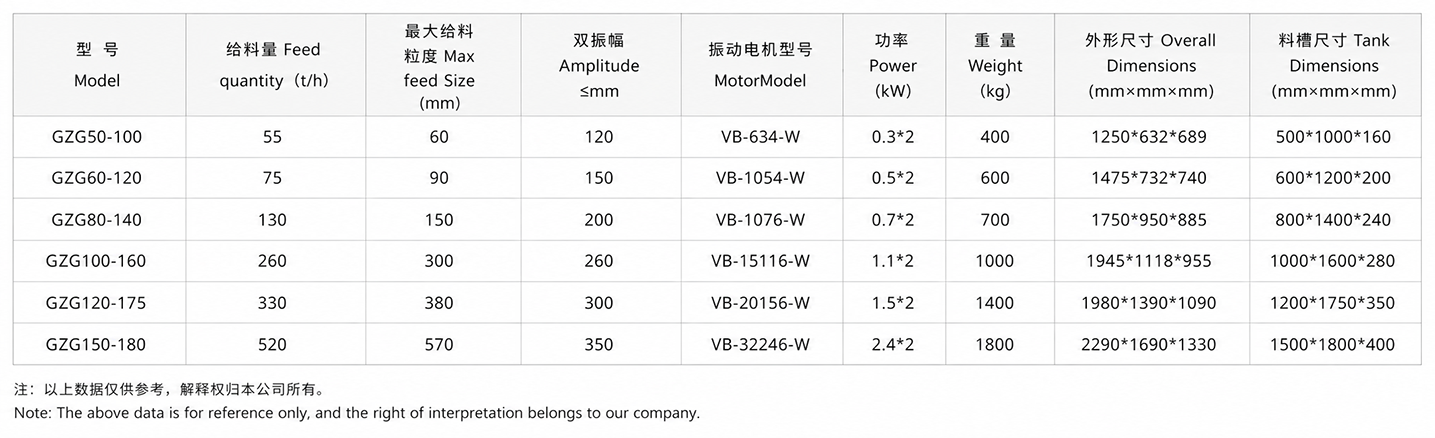

| 基本技术参数 PRINCIPAL TECHNICAL DATA | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 型号 Model |
给料量 Feed quantity (t/h) |
最大给料粒度 Max feed Size (mm) |
双振幅 Amplitude ≤mm |
振动电机型号 Vibration motor |
重量 Weight (kg) |
外形尺寸 Overall Dimensions (mm×mm×mm) |
料槽尺寸 宽*长*深 Tank size (mm×mm×mm) |
||
| 0° | -10° | 型号 Model |
功率 Power (kW) |
||||||
| GZG50-100 | 55 | 60 | 120 | 3-5 | VB-634-W | 0.3*2 | 400 | 1250*632*689 | 500*1000*160 |
| GZG60-120 | 75 | 90 | 150 | 3-5 | VB-1054-W | 0.5*2 | 600 | 1475*732*740 | 600*1200*200 |
| GZG80-140 | 130 | 150 | 200 | 4-7 | VB-1076-W | 0.7*2 | 700 | 1750*950*885 | 800*1400*240 |
| GZG100-160 | 260 | 300 | 260 | 4-7 | VB-15116-W | 1.1*2 | 1000 | 1945*1118*955 | 1000*1600*280 |
| GZG120-175 | 330 | 380 | 300 | 4-7 | VB-20156-W | 1.5*2 | 1400 | 1980*1390*1090 | 1200*1750*350 |
| GZG150-180 | 520 | 570 | 350 | 4-7 | VB-32246-W | 2.4*2 | 1800 | 2290*1690*1330 | 1500*1800*400 |
