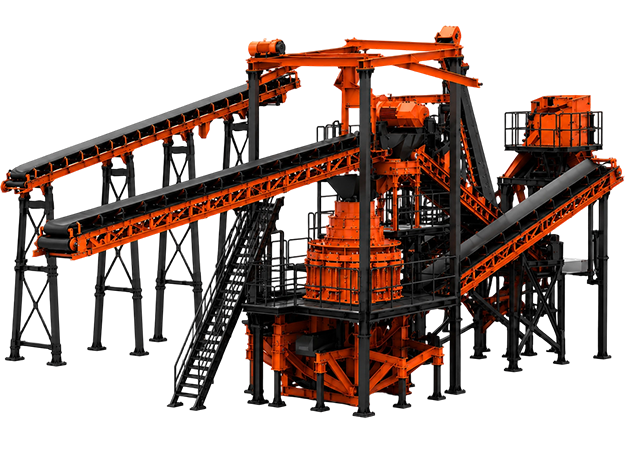

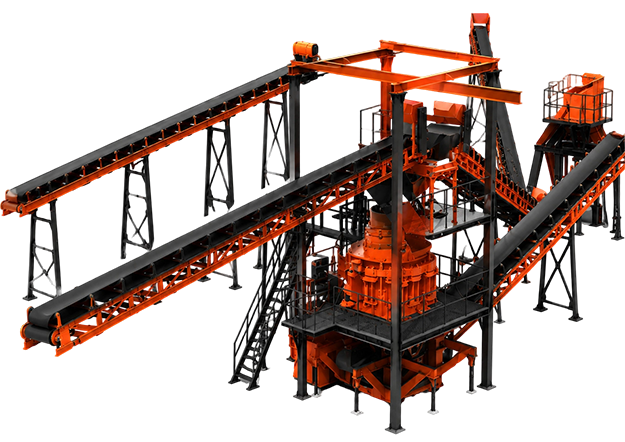

BELT CONVEYOR
本公司生产的皮带输送机具有输送量大、结构简单、维修方便、部件标准化等特点。它广泛地应用在矿山、冶金、煤炭等部门，用来输送松散物料或成件物品。根据输送工艺要求，可以单台输送，也可多台组合或与其它输送设备组成水平或倾斜的输送系统，以满足不同布置型式的作业线需要。皮带输送机可在环境温度-20~+40°C的范围内使用，输送物料的温度在50°C以下。
The Yuan Tong Shan Xing Brand belt conveyor series has a feature of large capacity, simplifiedconstruction, easy maintenance, standardized components. It's widely used in mining, metallurgyindustry to transport both of bulk materials and end products. By diferent technology it can be used insingle, multiple or combined with other equipment to form horizontal or incline transportation system tosatisfy different production line arrangement needs. It works with environment temperature rang-20-+40℃, material temperature below 50℃.

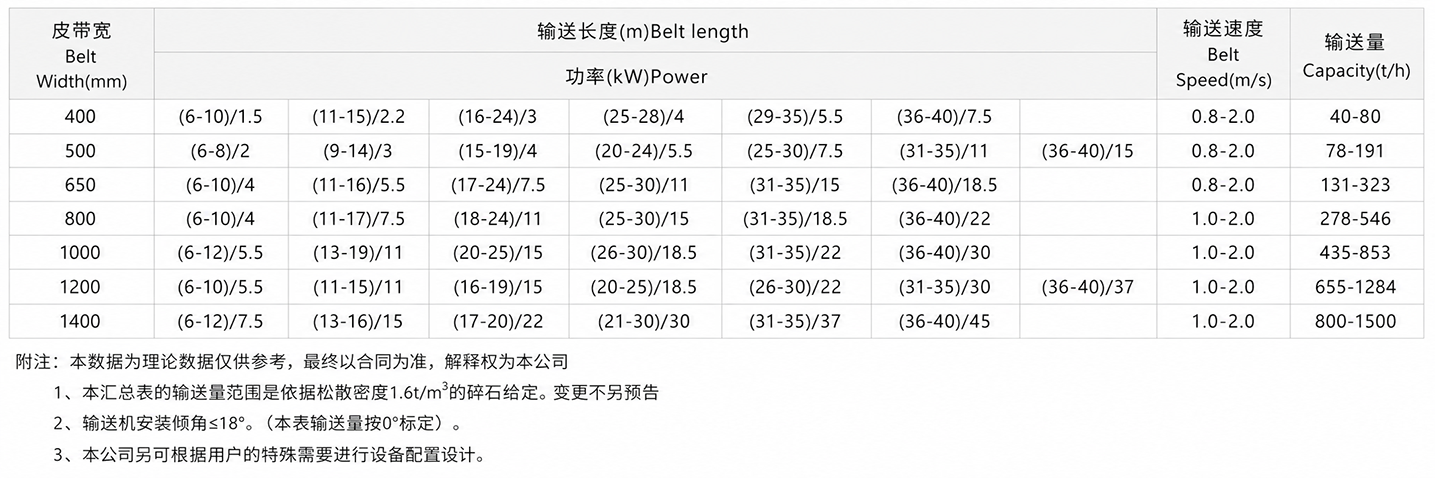

| 基本技术参数 PRINCIPAL TECHNICAL DATA | |||||||||
| 皮带宽 Belt Width(mm) |
输送长度(m) Belt length | 输送速度 Belt Speed(m/s) |
输送量 Capacity (t/h) |
||||||
| 功率(kW) Power | |||||||||
| 400 | (6-10)/1.5 | (11-15)/2.2 | (16-24)/3 | (25-28)/4 | (29-35)/5.5 | (36-40)/7.5 | 0.8-2.0 | 40-80 | |
| 500 | (6-8)/2.2 | (9-14)/3 | (15-19)/4 | (20-24)/5.5 | (25-30)/7.5 | (31-35)/11 | (36-40)/15 | 0.8-2.0 | 78-191 |
| 650 | (6-10)/4 | (11-16)/5.5 | (17-24)/7.5 | (25-30)/11 | (31-35)/15 | (36-40)/18.5 | 0.8-2.0 | 131-323 | |
| 800 | (6-10)/4 | (11-17)/7.5 | (18-24)/11 | (25-30)/15 | (31-35)/18.5 | (36-40)/22 | 1.0-2.0 | 278-546 | |
| 1000 | (6-12)/5.5 | (13-19)/11 | (20-25)/15 | (26-30)/18.5 | (31-35)/22 | (36-40)/30 | 1.0-2.0 | 435-853 | |
| 1200 | (6-10)/5.5 | (11-15)/11 | (16-19)/15 | (20-25)/18.5 | (26-30)/22 | (31-35)/30 | (36-40)/37 | 1.0-2.0 | 655-1284 |
| 1400 | (6-12)/7.5 | (13-16)/15 | (17-20)/22 | (21-30)/30 | (31-35)/37 | (36-40)/45 | 1.0-2.0 | 800-1500 | |
