VIBRATING SCREEN
本系列振动筛的运动轨迹呈圆周，是专门为采石厂筛分料石设计的，也可供选煤、选矿、建材、电力及化工部门等作产品分级用，本公司产品具有结构先进、激振力强、振动噪音小、易于维修、坚固耐用等特点。
The Yuan Tong Shan Xing Brand vibrating screen with circular motion is specially designed forquarry to separate crushed stone material into different sizes, and is also used as a grading machine incoal dressing, ore dressing, construction material, electric and chemical industries. It has a feature ofadvanced structure, powerful vibrating forces, low vibration noise, easy maintenance, high durability and etc.

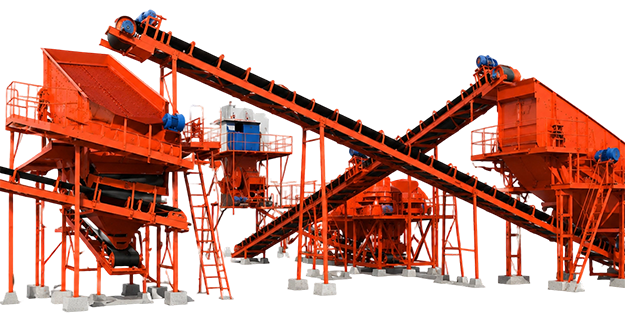

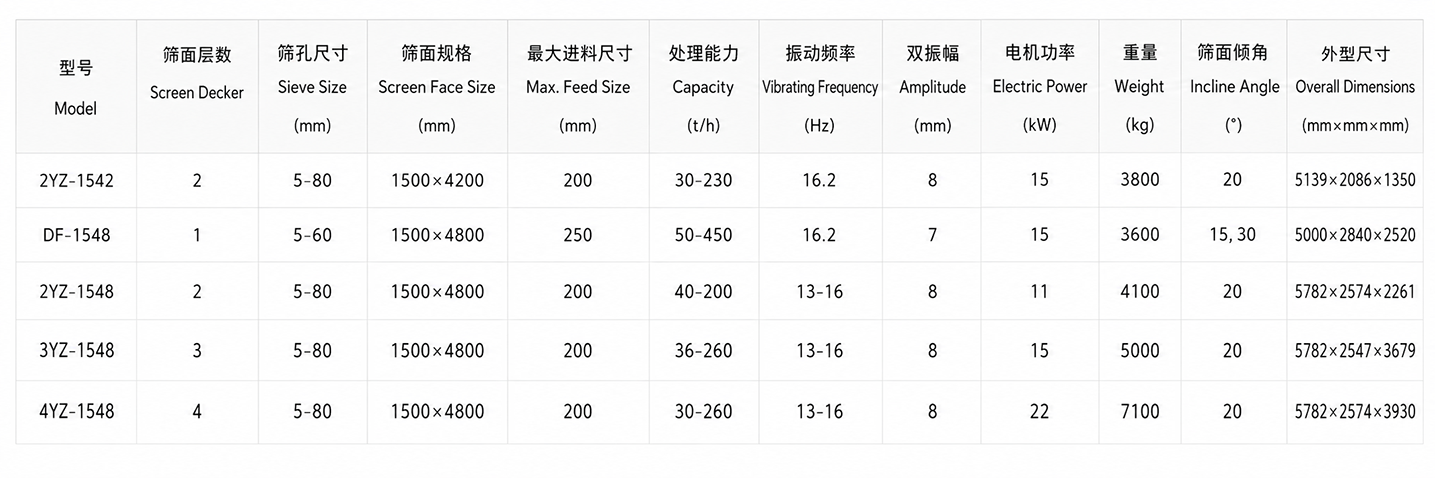

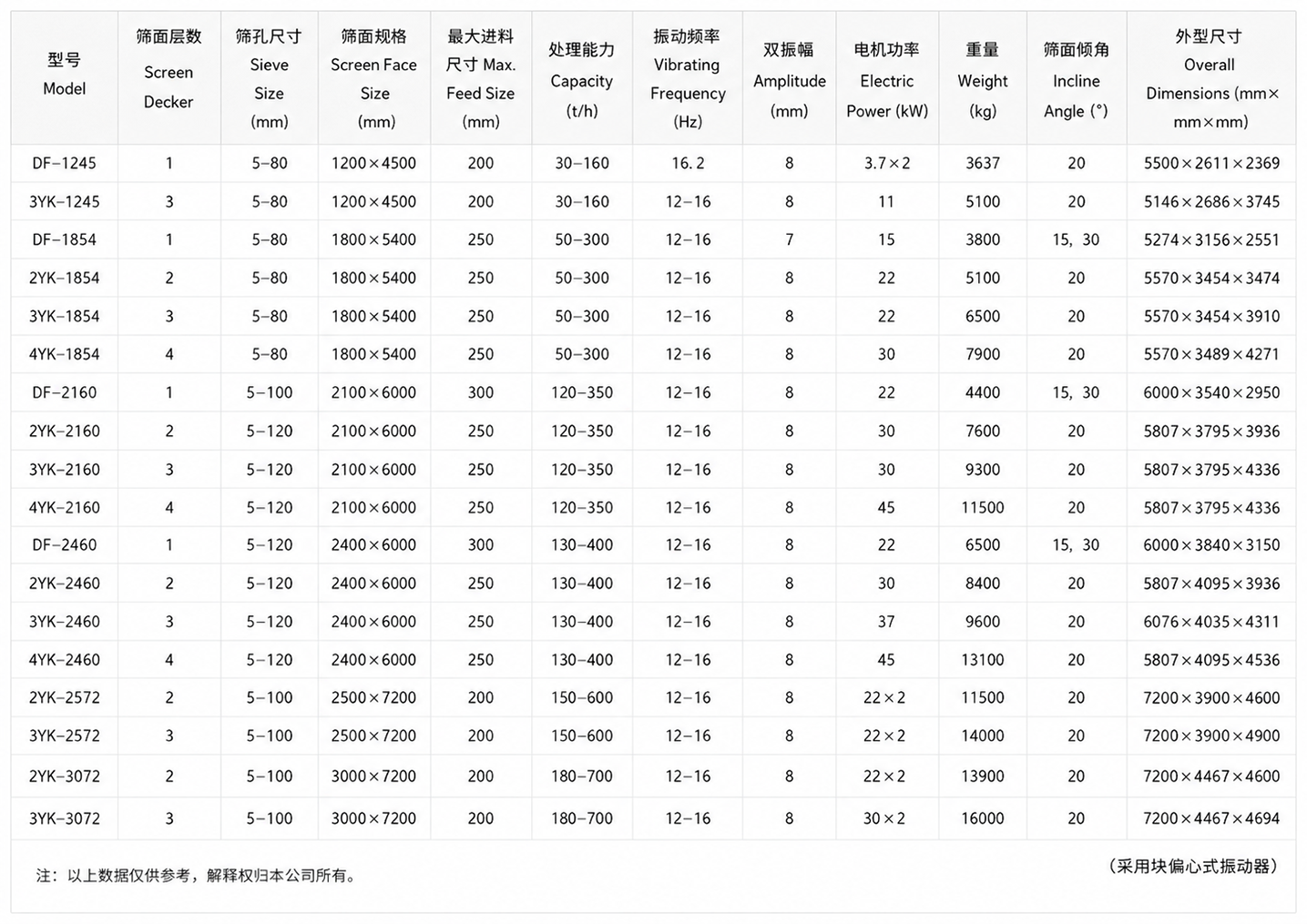

| 基本技术参数 PRINCIPAL TECHNICAL DATA | |||||||||||
| 型号 Model |
筛面层数 Screen Decker |
筛孔尺寸 Sieve Size (mm) |
筛面规格 Screen Face Size (mm) |
最大进料尺寸 Max Feed Size (mm) |
处理能力 Capacity (t/h) |
振动频率 Vibrating Frequency (Hz) |
双振幅 Amplitude (mm) |
电机功率 Electric Power (kW) |
重量 Weight (kg) |
筛面倾角 Incline Angle (°) |
外型尺寸 Overall Dimensions (mm×mm×mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2YZ-1542 | 2 | 5-80 | 1500×4200 | 200 | 30-230 | 16.2 | 8 | 15 | 3800 | 20 | 5139×2086×1350 |
| 2YZ-1548 | 2 | 5-80 | 1500×4800 | 200 | 40-200 | 13-16 | 8 | 11 | 4100 | 20 | 5782×2574×2261 |
| 3YZ-1548 | 3 | 5-80 | 1500×4800 | 200 | 36-260 | 13-16 | 8 | 15 | 5000 | 20 | 5782×2547×3679 |
| 4YZ-1548 | 4 | 5-80 | 1500×4800 | 200 | 30-260 | 13-16 | 8 | 18.5 | 7100 | 20 | 5782×2574×3930 |
| 2YZ-2160 | 2 | 5-120 | 2100×6000 | 250 | 120-350 | 12-16 | 8 | 30 | 7600 | 20 | 5807×3795×3936 |
| 3YZ-2160 | 3 | 5-120 | 2100×6000 | 250 | 120-350 | 12-16 | 8 | 30 | 9300 | 20 | 5807×3795×4336 |
| 4YZ-2160 | 4 | 5-120 | 2100×6000 | 250 | 120-350 | 12-16 | 8 | 45 | 11500 | 20 | 5807×3795×4336 |
| 2YZ-2460 | 2 | 5-120 | 2400×6000 | 250 | 130-400 | 12-16 | 8 | 30 | 8400 | 20 | 5807×4095×3936 |
| 3YZ-2460 | 3 | 5-120 | 2400×6000 | 250 | 130-400 | 12-16 | 8 | 37 | 9600 | 20 | 6076×4035×4311 |
| 4YZ-2460 | 4 | 5-120 | 2400×6000 | 250 | 130-400 | 12-16 | 8 | 45 | 13100 | 20 | 5807×4095×4536 |
| 2YZ-2572 | 2 | 5-100 | 2500×7200 | 200 | 150-600 | 12-16 | 8 | 22×2 | 11500 | 20 | 7200×3900×4600 |
| 3YZ-2572 | 3 | 5-100 | 2500×7200 | 200 | 150-600 | 12-16 | 8 | 30×2 | 14000 | 20 | 7200×3900×4900 |
| 2YZ-3072 | 2 | 5-100 | 3000×7200 | 200 | 180-700 | 12-16 | 8 | 30×2 | 13900 | 20 | 7200×4467×4600 |
| 3YZ-3072 | 3 | 5-100 | 3000×7200 | 200 | 180-700 | 12-16 | 8 | 30×2 | 16000 | 20 | 7200×4467×4694 |
| DF-1245 | 1 | 50-80 | 1200×4500 | 200 | 30-160 | 16.2 | 8 | 3.7×2 | 3637 | 20 | 5500×2611×2369 |
| 3YK-1245 | 3 | 50-80 | 1200×4500 | 200 | 30-160 | 12-16 | 8 | 11 | 5100 | 20 | 5146×2686×3745 |
| DF-1548 | 1 | 5-60 | 1500×4800 | 250 | 50-450 | 16.2 | 7 | 15 | 3600 | 15,30 | 5000×2840×2520 |
| DF-1854 | 1 | 50-80 | 1800×5400 | 250 | 50-300 | 12-16 | 7 | 15 | 3800 | 15,30 | 5274×3156×2551 |
| 2YK-1854 | 2 | 50-80 | 1800×5400 | 250 | 50-300 | 12-16 | 8 | 22 | 5100 | 20 | 5570×3454×3474 |
| 3YK-1854 | 3 | 50-80 | 1800×5400 | 250 | 50-300 | 12-16 | 8 | 22 | 6500 | 20 | 5570×3454×3910 |
| 4YK-1854 | 4 | 50-80 | 1800×5400 | 250 | 50-300 | 12-16 | 8 | 30 | 7900 | 20 | 5570×3489×4271 |
| DF-2160 | 1 | 5-100 | 2100×6000 | 300 | 120-350 | 12-16 | 8 | 22 | 4400 | 15,30 | 6000×3540×2950 |
| 2YK-2160 | 2 | 5-120 | 2100×6000 | 250 | 120-350 | 12-16 | 8 | 30 | 7600 | 20 | 5807×3795×3936 |
| 3YK-2160 | 3 | 5-120 | 2100×6000 | 250 | 120-350 | 12-16 | 8 | 30 | 9300 | 20 | 5807×3795×4336 |
| 4YK-2160 | 4 | 5-120 | 2100×6000 | 250 | 120-350 | 12-16 | 8 | 45 | 11500 | 20 | 5807×3795×4336 |
| DF-2460 | 1 | 5-120 | 2400×6000 | 300 | 130-400 | 12-16 | 8 | 22 | 6500 | 15,30 | 6000×3840×3150 |
| 2YK-2460 | 2 | 5-120 | 2400×6000 | 250 | 130-400 | 12-16 | 8 | 30 | 8400 | 20 | 5807×4095×3936 |
| 3YK-2460 | 3 | 5-120 | 2400×6000 | 250 | 130-400 | 12-16 | 8 | 37 | 9600 | 20 | 6076×4035×4311 |
| 4YK-2460 | 4 | 5-120 | 2400×6000 | 250 | 130-400 | 12-16 | 8 | 45 | 13100 | 20 | 5807×4095×4536 |
| 2YK-2572 | 2 | 5-100 | 2500×7200 | 200 | 150-600 | 12-16 | 8 | 22×2 | 11500 | 20 | 7200×3900×4600 |
| 3YK-2572 | 3 | 5-100 | 2500×7200 | 200 | 150-600 | 12-16 | 8 | 30×2 | 14000 | 20 | 7200×3900×4900 |
| 2YK-3072 | 2 | 5-100 | 3000×7200 | 200 | 180-700 | 12-16 | 8 | 30×2 | 13900 | 20 | 7200×4467×4600 |
| 3YK-3072 | 3 | 5-100 | 3000×7200 | 200 | 180-700 | 12-16 | 8 | 30×2 | 16000 | 20 | 7200×4467×4694 |
