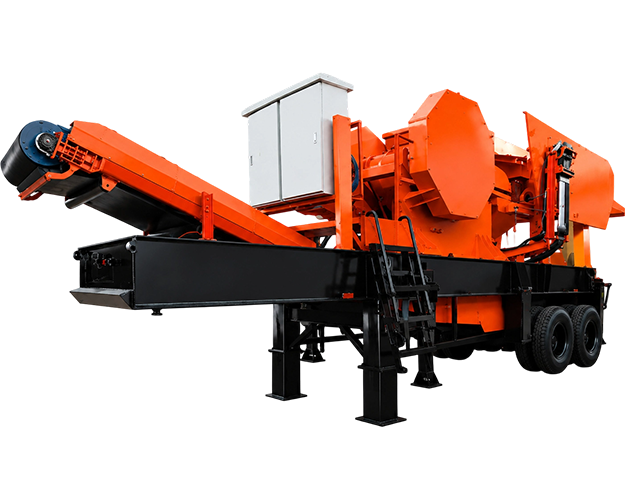

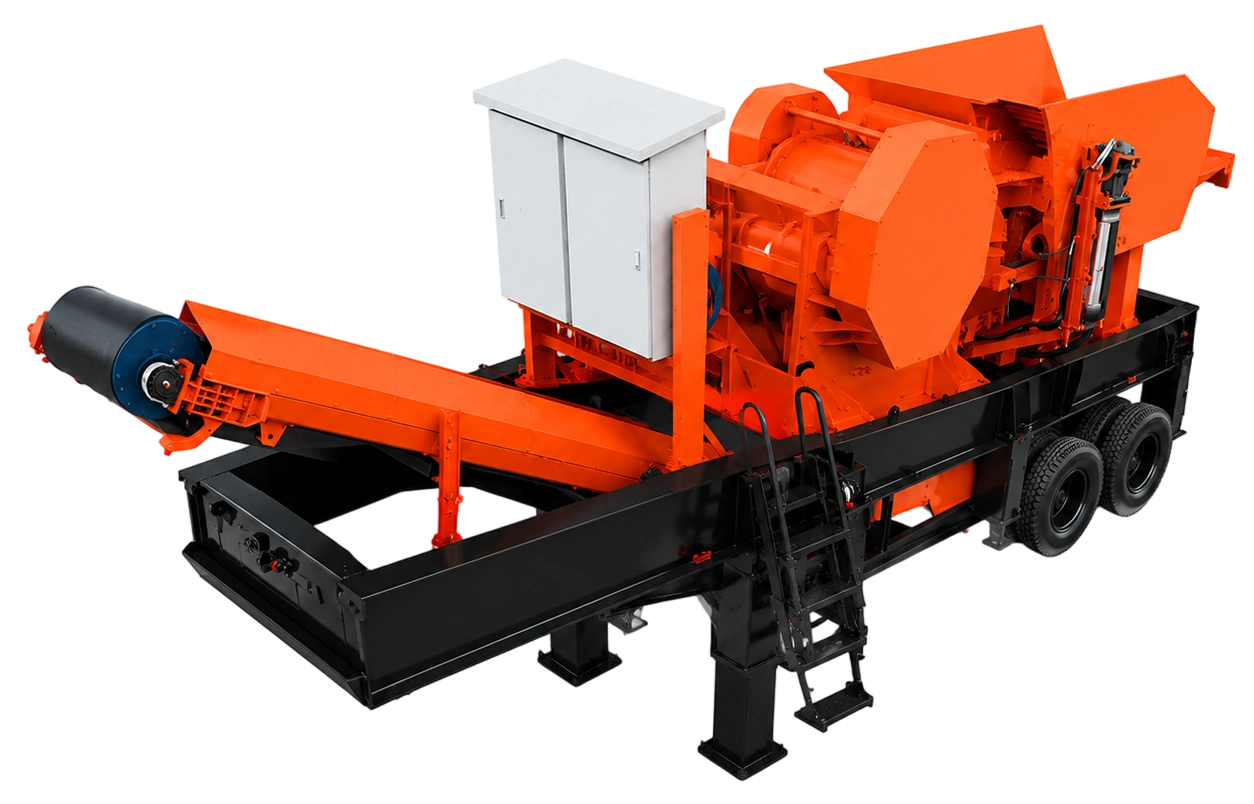

智能化轮式破碎筛分站系列

WHEEL CRUSHING & SCREENING STATION

上海远通实业有限公司最新研制的50-300th移动式碎石筛分成套设备主要优点表现在根据原料的来源,使用地选择最佳生产场地,根据石料用量情况,可在数个工地周转使用或在最短时间内聚集数台设备集中供料,减少设备的闲置时间;安装、维修、保养方便,移动式碎石筛分成套设备目前已被广泛应用于公路建设与养护。
The main advantage of the 50-300 traveling crushing ore & screening broken-stones combined equipmentdeveloped by Shanghai Yuan Tong Industrial Co., Ltd. expresses at according to raw ore source and the areaof the broken-stones used chooses the best working ground; at according to the anticipating dosage ofbroken-stones can turnovering use a set of the traveling crushing ore & screening broken-stones combinedequipment in several working grounds or in a most short time gathering several ser equipments concentratingproviding broken-stones in order to reduce the idle time of equipments;

PRODUCT PARAMETERS

产品参数

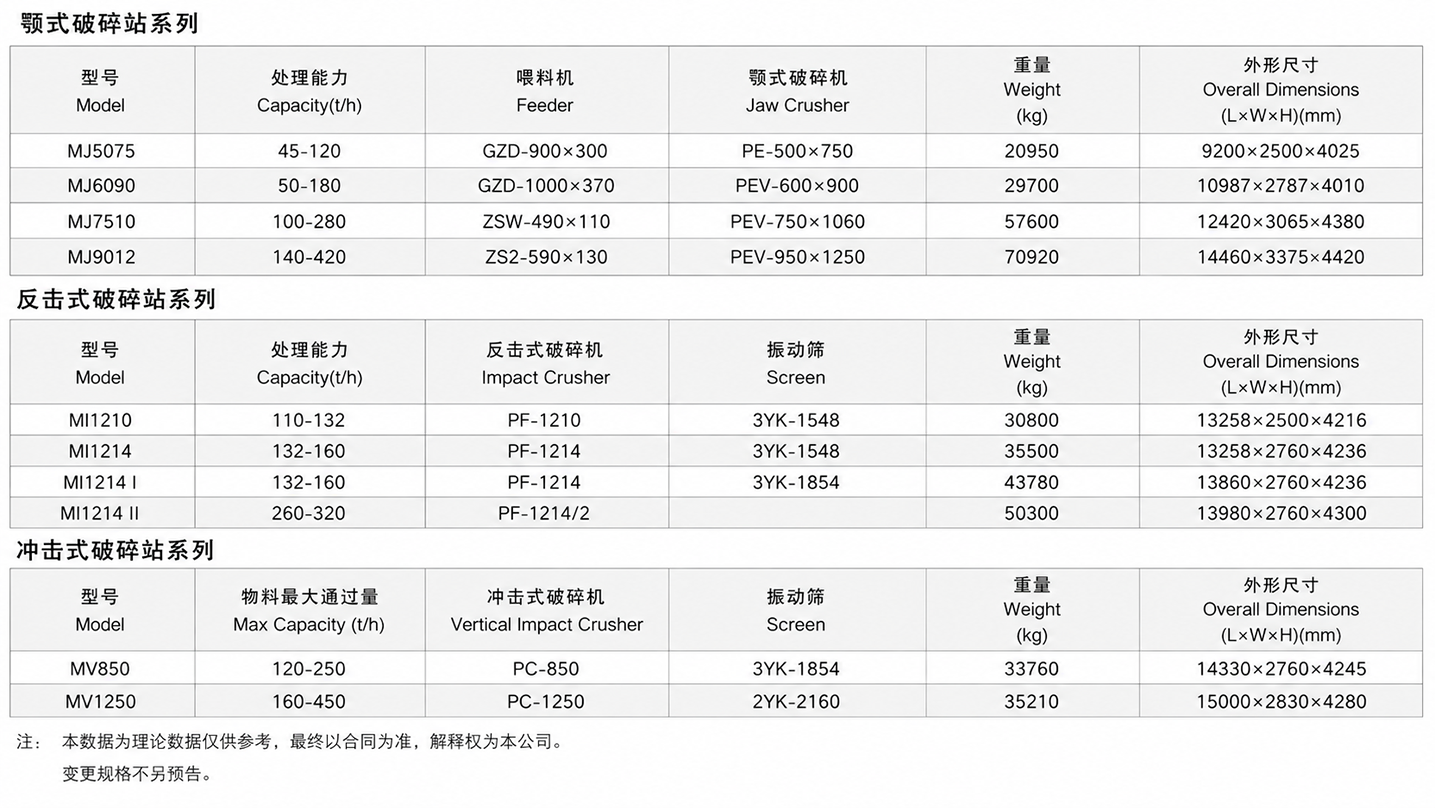

基本技术参数  PRINCIPAL TECHNICAL DATA
颚式破碎站系列
型号
Model
处理能力
Capacity(t/h)
喂料机
Feeder
颚式破碎机
Jaw Crusher
重量
Weight(kg)
外型尺寸
Overall Dimensions
(L×W×H)(mm)
MJ5075 45-120 GZD-900×300 PE-500×750 24000 9200×2500×4065
MJ6090 50-180 GZD-1000×370 PEV-600×900 31600 10950×2790×4020
MJ7510 100-280 ZSW-490×110 PEV750×1060 57600 12420×3065×4380
MJ9012 140-420 ZSW-590×130 PEV-900×1200 70920 14460×3375×4420
反击式破碎站系列
型号
Model
处理能力
Capacity(t/h)
反击式破碎机
Impact Crusher
振动筛
Screen
重量
Weight(kg)
外型尺寸
Overall Dimensions
(L×W×H)(mm)
MI1010 50-80 PF-1010 3YK-1245 23700 12550×2500×4120
MI1210 110-132 PF-1210 3YK-1548 35300 13258×2500×4156
MI1214 132-160 PF-1214 3YK-1548 40000 13258×2760×4236
MI1214I 132-160 PF-1214 3YK-1854 43000 14070×2760×4210
MI1214II 260-320 PF-1214/2   50300 13980×2760×4300
冲击式破碎站系列
型号
Model
物料最大通过量
Max Capacity(t/h)
冲击式破碎机
Vertical Impact Crusher
振动筛
Screen
重量
Weight(kg)
外型尺寸
Overall Dimensions
(L×W×H)(mm)
MV850 120-250 PC-850 3YK-1854 33760 14330×2760×4245
MV1250 160-450 PC-1250 2YK-2160 35210 15000×2830×4280
注:以上数据为理论数据仅供参考,解释权为本公司所有。
Note: The above data for theoretical data for reference only, the power of interpretation for the company.
注:变更规格不另预告。
Note: Change the specifications without prior notice.
