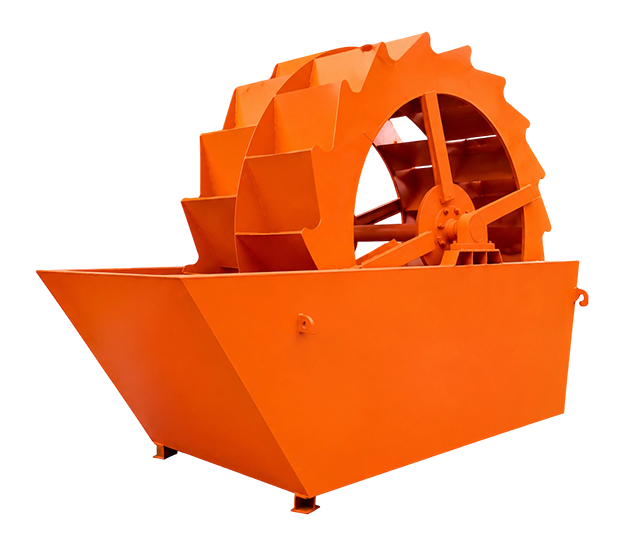

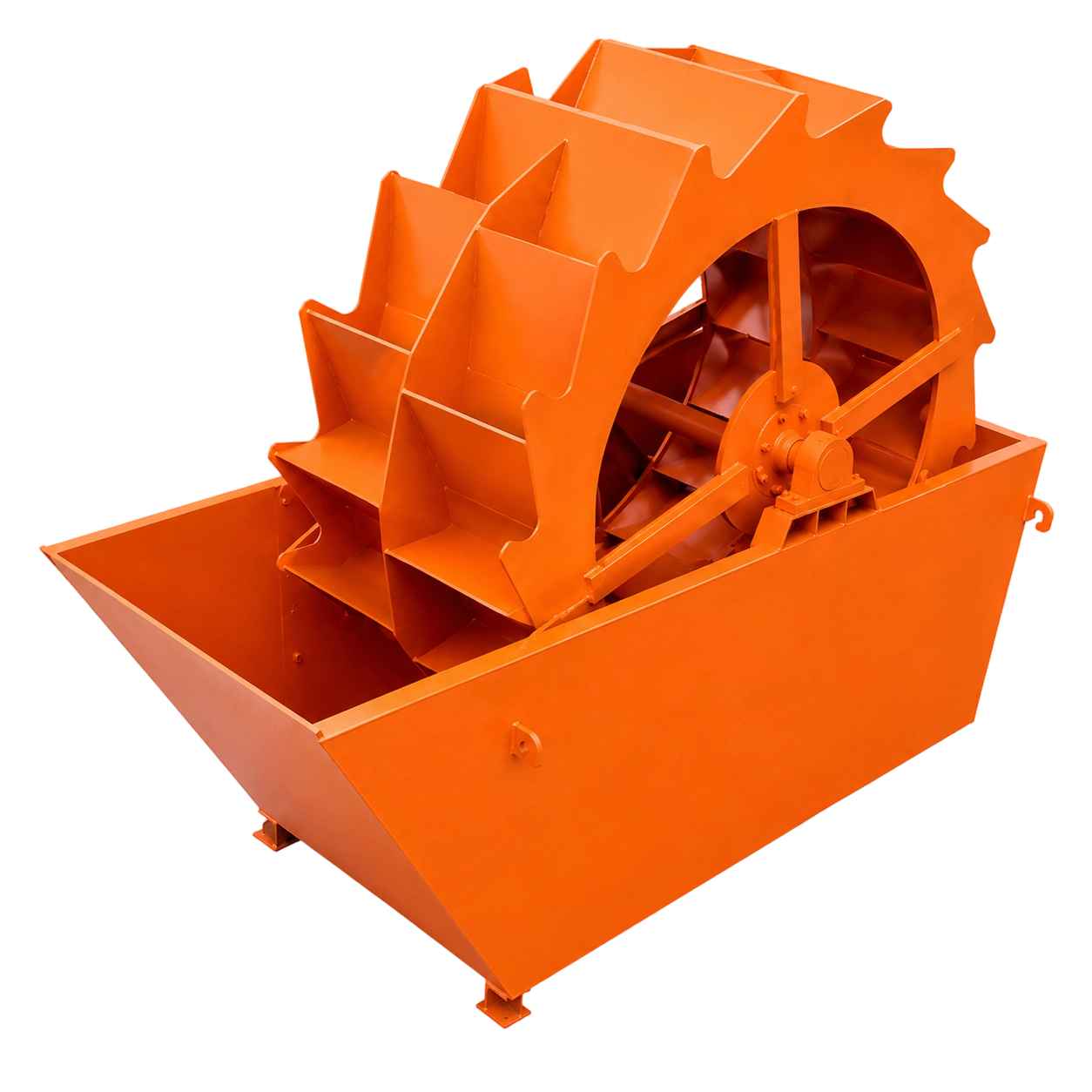

WHEEL SAND WASHER
轮式洗砂机结构简单、处理量大、功率消耗小、洗净度高,叶轮传动轴承装置与水和受水物料隔离大大避免了轴承因浸水、砂和污染物导致损坏的现象发生,大大降低事故率。新奇的密封结构、全封锁油浴式传动装置、可调式溢流堰板,确保了该系列产品高效、耐用,具有清洗、脱水效果好,细粒产品保持不乱等特点。
The wheel-type sand washer features a simple structure, high processing capacity, low power consumption, and excellent cleaning efficiency. Its impeller drive bearing assembly is isolated from water and wet materials, effectively preventing bearing damage caused by water immersion, sand ingress, or contaminants, thereby significantly reducing the failure rate. With its innovative sealing structure, fully enclosed oil-bath drive mechanism, and adjustable overflow weir, this series offers high efficiency and durability, delivering superior cleaning and dewatering performance while ensuring the stable retention of fine-grained products.

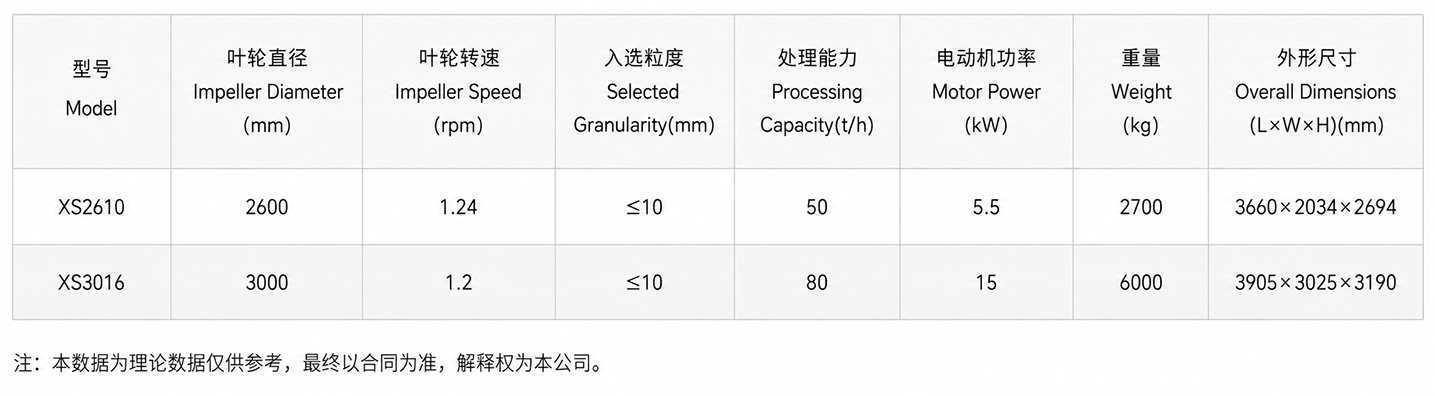

| 基本技术参数 PRINCIPAL TECHNICAL DATA | |||||||
| 型号 Model |
叶轮直径 Impeller Diameter (mm) |
叶轮转速 Impeller Speed (rpm) |
入选粒度 Selected Granularity (mm) |
处理能力 Processing Capacity (t/h) |
电动机功率 Motor Power (kW) |
重量 Weight (kg) |
外形尺寸 Overall Dimensions (L×W×H)(mm) |
|---|---|---|---|---|---|---|---|
| XS2610 | 2600 | 1.24 | ≤10 | 50 | 5.5 | 2700 | 3660×2034×2694 |
| XS3016 | 3000 | 1.2 | ≤10 | 80 | 15 | 6000 | 3905×3025×3190 |
