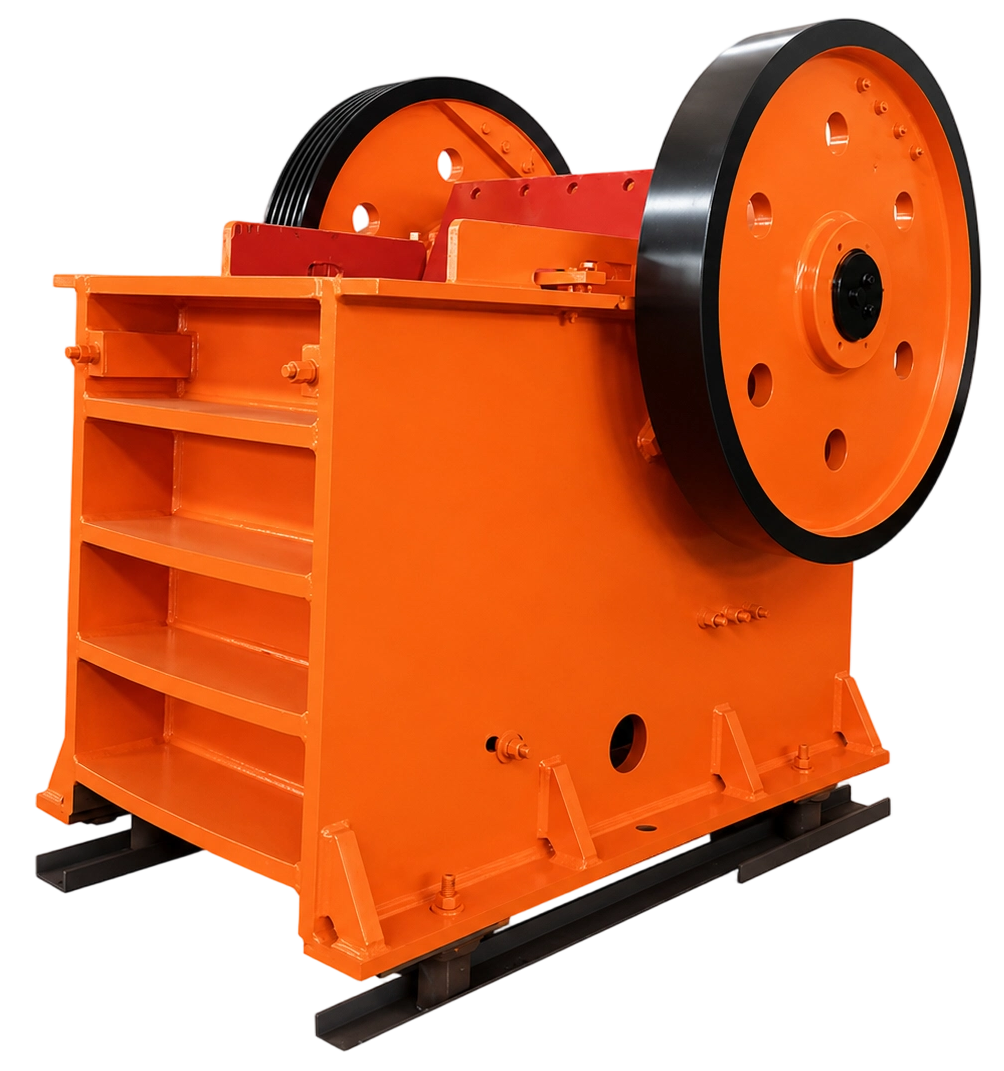

JAW CRUSHER RANGE
本系列产品，具有破碎比大、产品粒度均匀、结构简单、工作可靠、维修简便、运行费用经济等特点。广泛运用于矿山、冶炼、建材、公路、铁路、水利和化学工业等众多部门，破碎抗压强度不超过320兆帕的各种物料。
The Yuan Tong Shan Xing Brand jaw crusher has a feature of big crushing ratio, uniform product size, simpleconstruction, reliable operation, easy maintenance, low operating cost. It is widely used in mining, metallurgy.construction material highway, railway, water conservancy and chemical industries for crushing various materials withcompression strength less than 320 MPa.

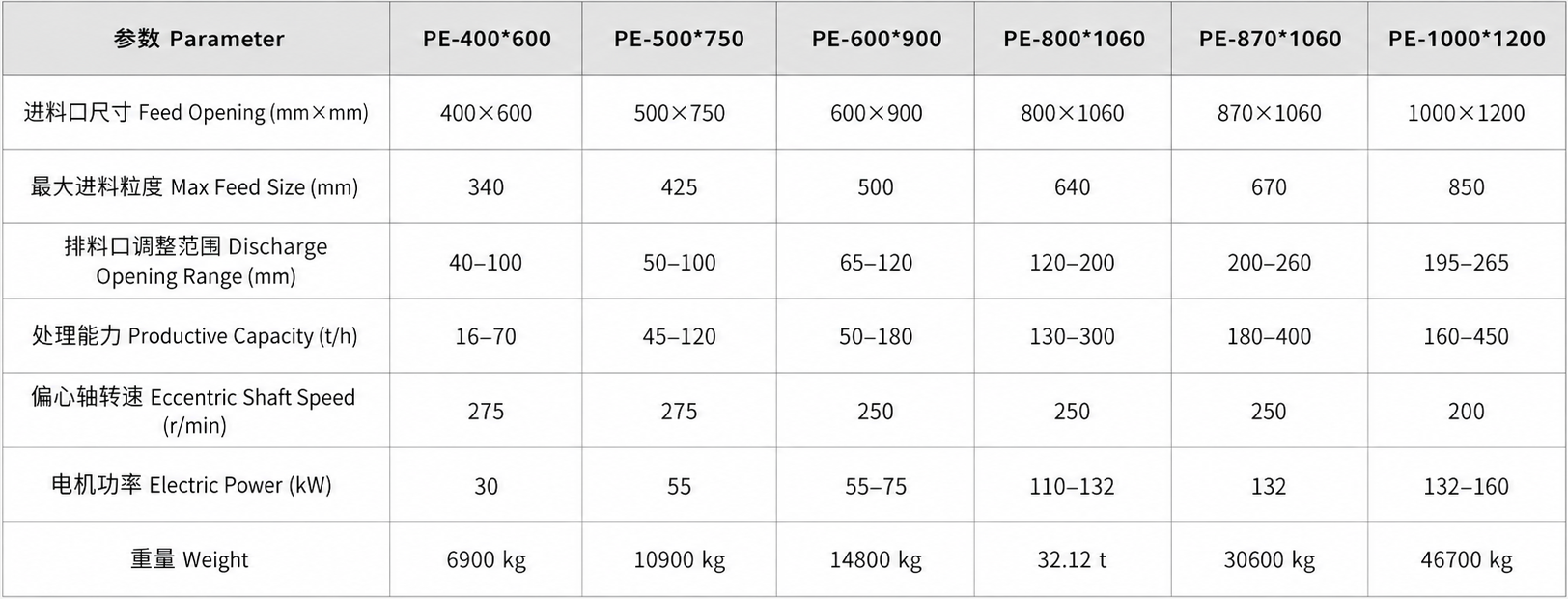

| 基本技术参数 PRINCIPAL TECHNICAL DATA | ||||||||
| 型号 Model |
进料口尺寸 Feed Opening (mm×mm) |
最大进料粒度 Max feed Size (mm) |
排料口调整范围 Discharge Opening Range (mm) |
处理能力 Productive Capacity (t/h) |
偏心轴转速 Eccentric shaft Speed (r/min) |
电机功率 Electric Power (kW) |
重量 Weight (kg) |
外型尺寸 Overall Dimensions (mm) |
|---|---|---|---|---|---|---|---|---|
| PE-400×600 | 400×600 | 340 | 40-100 | 16-70 | 275 | 30 | 6900 | 1655×1732×1586 |
| PE-500×750 | 500×750 | 425 | 50-100 | 45-120 | 275 | 55 | 10900 | 1890×1916×1870 |
| PE-600×900 | 600×900 | 500 | 65-120 | 50-130 | 250 | 55-75 | 15500 | 2520×1840×2300 |
| PE-750×1060 | 750×1060 | 630 | 80-160 | 100-230 | 250 | 110 | 28000 | 2810×2472×2830 |
| PE-800×1060 | 800×1060 | 640 | 120-200 | 130-250 | 250 | 110 | 30000 | 2860×2472×2830 |
| PE-870×1060 | 870×1060 | 670 | 200-260 | 180-300 | 250 | 110 | 30500 | 2830×2472×2860 |
| PE-900×1200 | 900×1200 | 750 | 95-165 | 180-380 | 200 | 110-132 | 50000 | 3788×2808×3110 |
| PE-1000×1200 | 1000×1200 | 850 | 195-265 | 190-400 | 200 | 132-160 | 51000 | 3888×2808×3110 |
