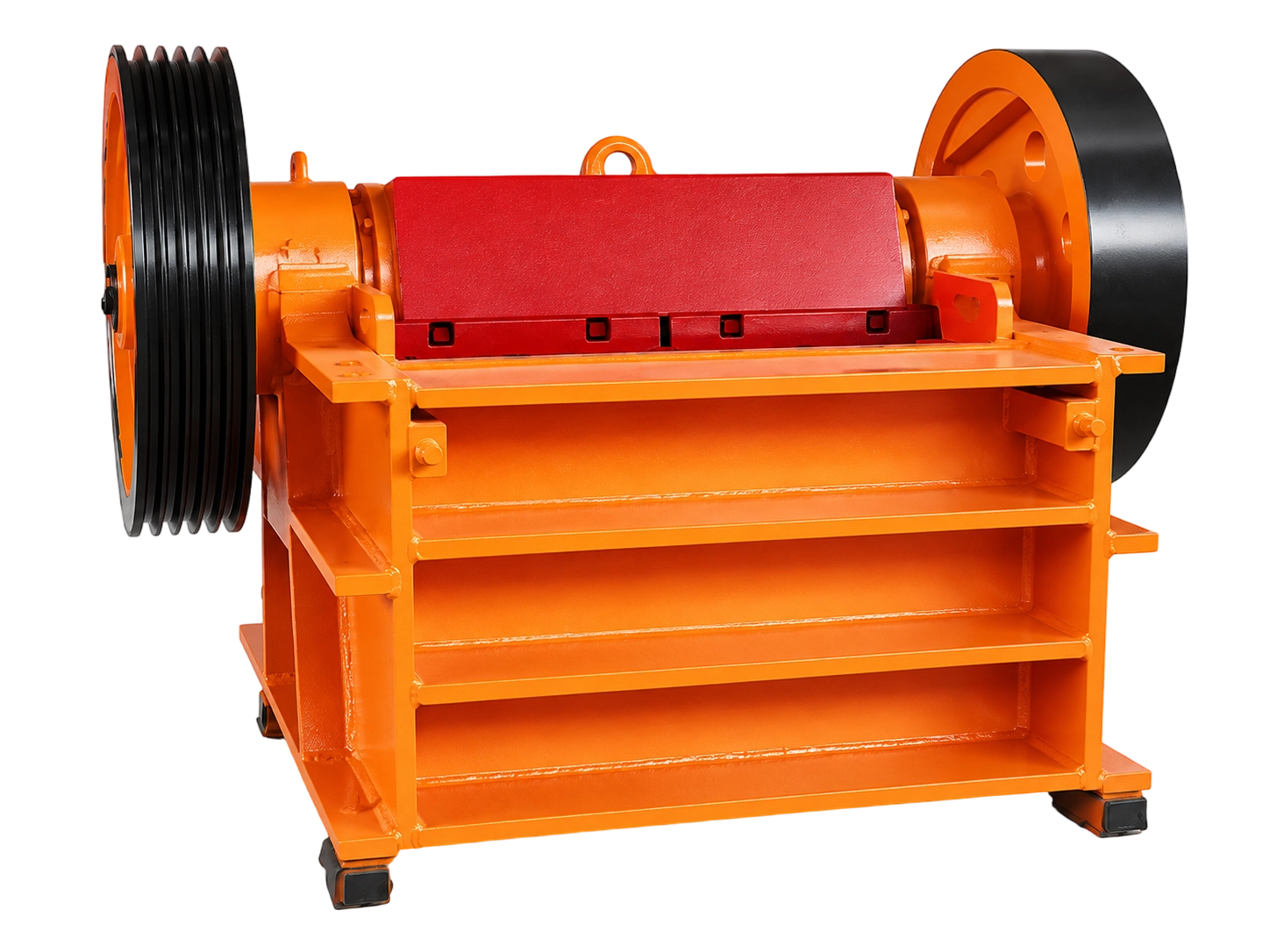

细颚式破碎机系列

FINE JAW CRUSHER SERIES

本系列产品,具有破碎比大、产品粒度均匀、结构简单、工作可靠、维修简便、运行费用经济等特点。广泛运用于矿山、冶炼、建材、公路、铁路、水利和化学工业等众多部门,破碎抗压强度不超过320兆帕的各种物料。
The Yuan Tong Shan Xing Brand jaw crusher has a feature of big crushing ratio, uniform product size, simpleconstruction, reliable operation, easy maintenance, low operating cost. It is widely used in mining, metallurgy.construction material highway, railway, water conservancy and chemical industries for crushing various materials withcompression strength less than 320 MPa.

PRODUCT PARAMETERS

产品参数

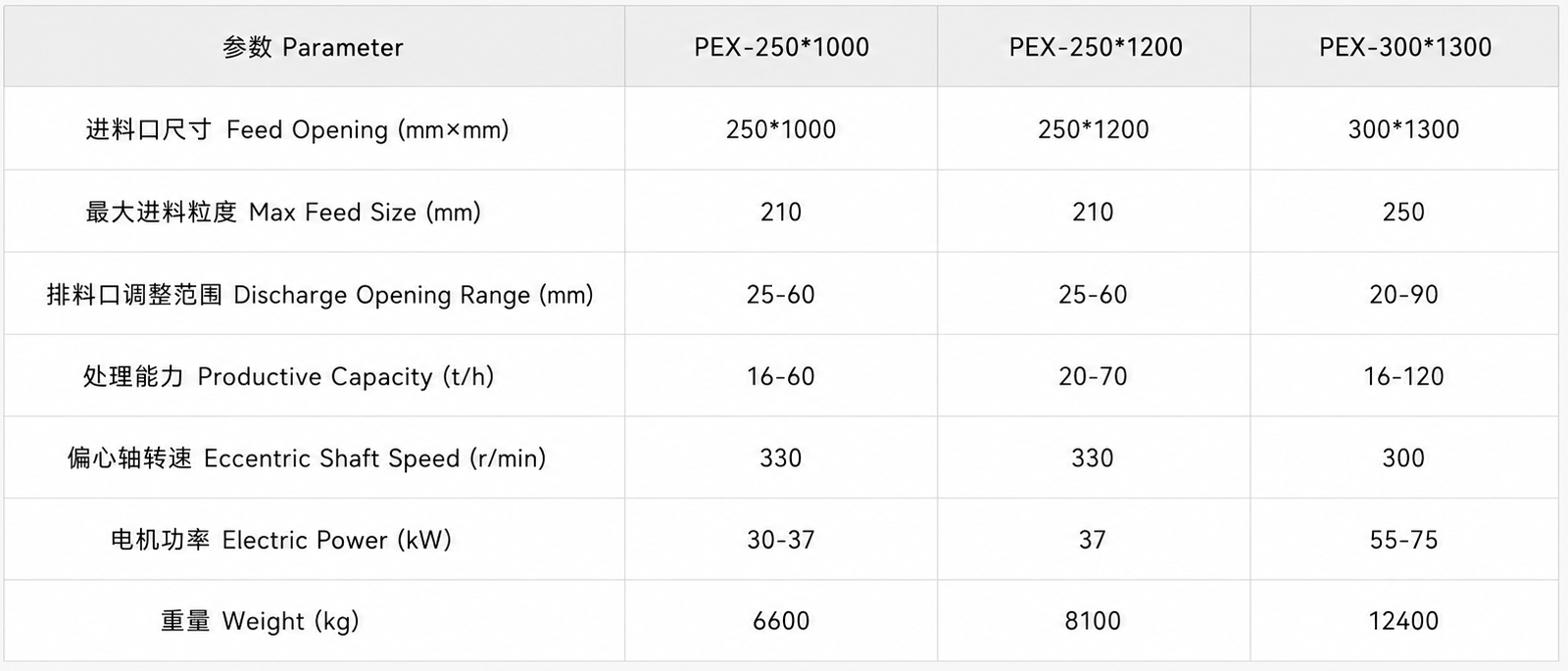

基本技术参数  PRINCIPAL TECHNICAL DATA
型号
Model
进料口尺寸
Feed Opening
(mm×mm)
最大进料粒度
Max feed Size
(mm)
排料口调整范围
Discharge Opening
Range (mm)
处理能力
Productive
Capacity
(t/h)
偏心轴转速
Eccentric shaft
Speed (r/min)
电机功率
Electric Power
(kW)
重量
Weight
(kg)
外型尺寸
Overall Dimensions
(mm)
PEX-250×1000 250×1000 210 25-60 16-60 330 30-37 6600 1752×1990×1380
PEX-250×1200 250×1200 210 25-60 20-70 330 37 8100 1900×2192×1430
PEX-300×1300 300×1300 250 20-90 16-120 300 55-75 12400 2090×2361×1730
注:处理能力与石料的硬度、出料粒度及含水量等有关,以上数据仅供参考,最终以合同为准,解释权为本公司。
变更规格不另预告。
