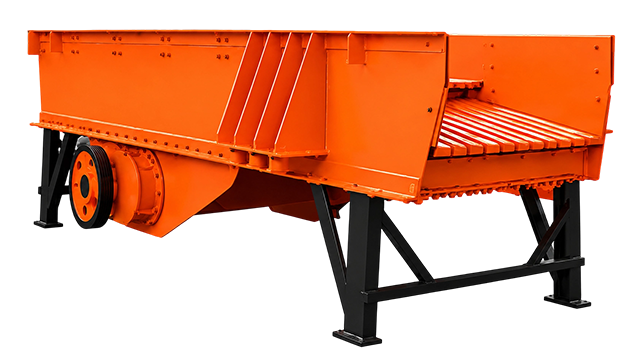

振动喂料机系列

VIBRATING FEEDER

直线振动式给料机系列,具有振动平稳,工作可靠,寿命长等特点,可为碎石机械连续、均匀喂料,并对物料进行粗筛分。广泛应用于选 矿、建材、硅酸盐化学工业中的碎石、筛分联合设备中。

The linear vibrating feeder series features stable vibration, reliable operation, and a long service life; it provides continuous, uniform feeding for crushing machinery while simultaneously performing coarse screening of the material. These feeders are widely used in combined crushing and screening systems across the mineral processing, building materials, and silicate chemical industries.

PRODUCT PARAMETERS

产品参数

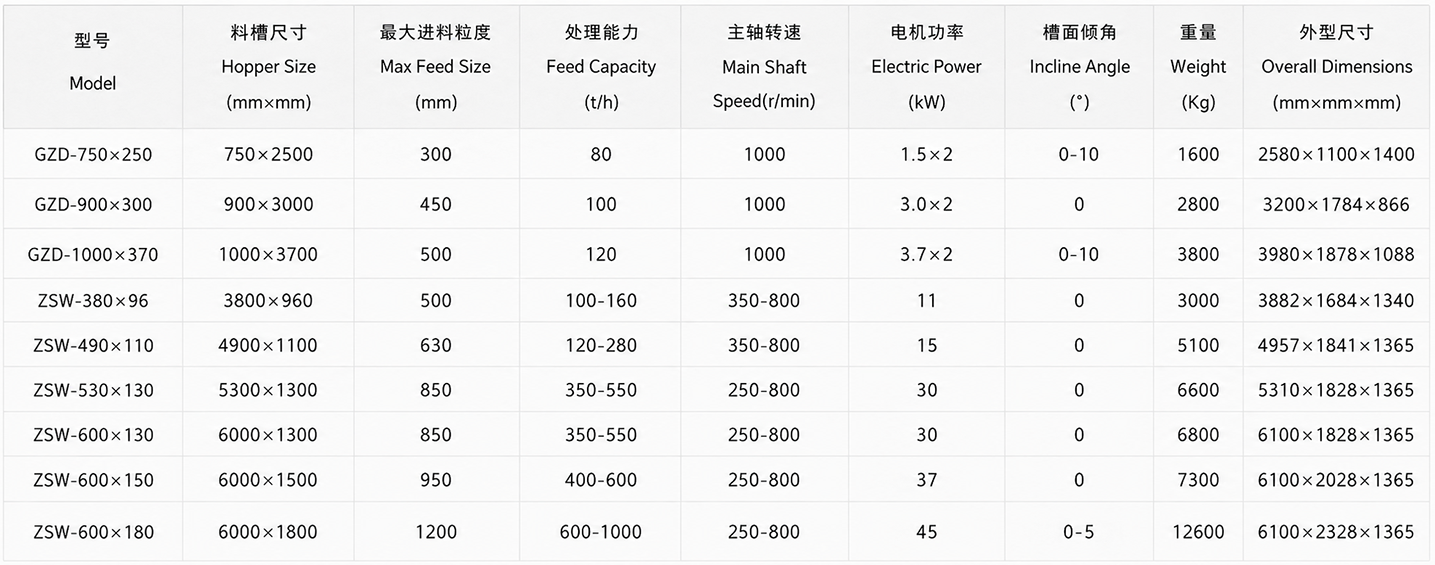

基本技术参数   PRINCIPAL TECHNICAL DATA
型号
Model
料槽尺寸
Hopper Size
(mm×mm)
最大进料粒度
Max Feed Size
(mm)
处理能力
Feed Capacity
(t/h)
主轴转速
Main Shaft Speed(r/min)
电机功率
Electric Power(kW)
槽面倾角
Incline Angle
(°)
重量
Weight
(Kg)
外型尺寸
Overall Dimensions
(mm×mm×mm)
GZD-750×250 750×2500 300 80 1000 1.5×2 0-10 1600 2580×1100×1400
GZD-900×300 900×3000 450 100 1000 3.0×2 0 2800 3200×1784×866
GZD-1000×370 1000×3700 500 120 1000 3.7×2 0-10 3800 3980×1878×1088
ZSW-380×96 3800×960 500 100-160 350-800 11 0 3000 3882×1684×1340
ZSW-490×110 4900×1100 630 120-280 350-800 15 0 5100 4957×1841×1365
ZSW-530×130 5300×1300 850 350-550 250-800 30 0 6600 5310×1828×1365
ZSW-600×130 6000×1300 850 350-550 250-800 30 0 6800 6100×1828×1365
ZSW-600×150 6000×1500 950 400-600 250-800 37 0 7300 6100×2028×1365
ZSW-600×180 6000×1800 1200 600-1000 250-800 45 0-5 12600 6100×2328×1365

注:本数据为理论数据仅供参考,最终以合同为准,解释权为本公司。
本表处理能力是依据松散密度1.6t/m³的碎石给定。变更规格不另预告。
Notes: The table specified capacity is relative to crushed stone with loose volume density 1.6t/m³.
