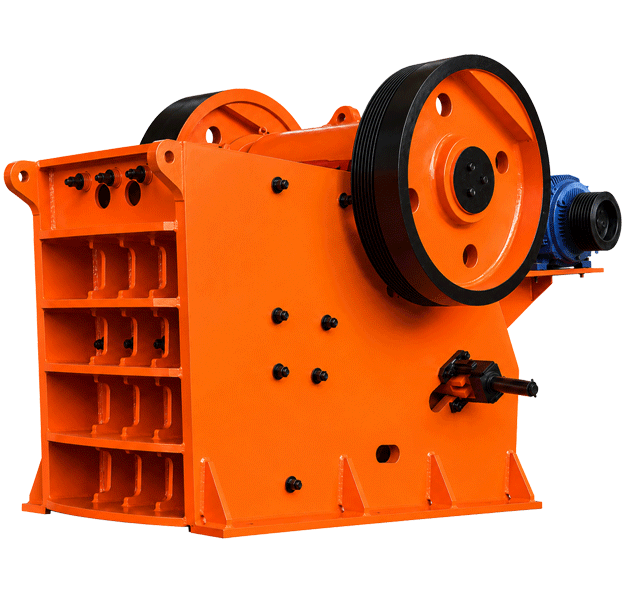

欧版颚式破碎机系列

JAW CRUSHER SERIES

本系列产品,具有破碎比大、产品粒度均匀、结构简单、工作可靠、维修简便、运行费用经济等特点。广泛运用于矿山、冶炼、建材、公路、铁路、水利和化学工业等众多部门,破碎抗压强度不超过320兆帕的各种物料。
The Yuan Tong Shan Xing Brand jaw crusher has a feature of big crushing ratio, uniform product size, simpleconstruction, reliable operation, easy maintenance, low operating cost. It is widely used in mining, metallurgy.construction material highway, railway, water conservancy and chemical industries for crushing various materials withcompression strength less than 320 MPa.

PRODUCT PARAMETERS

产品参数

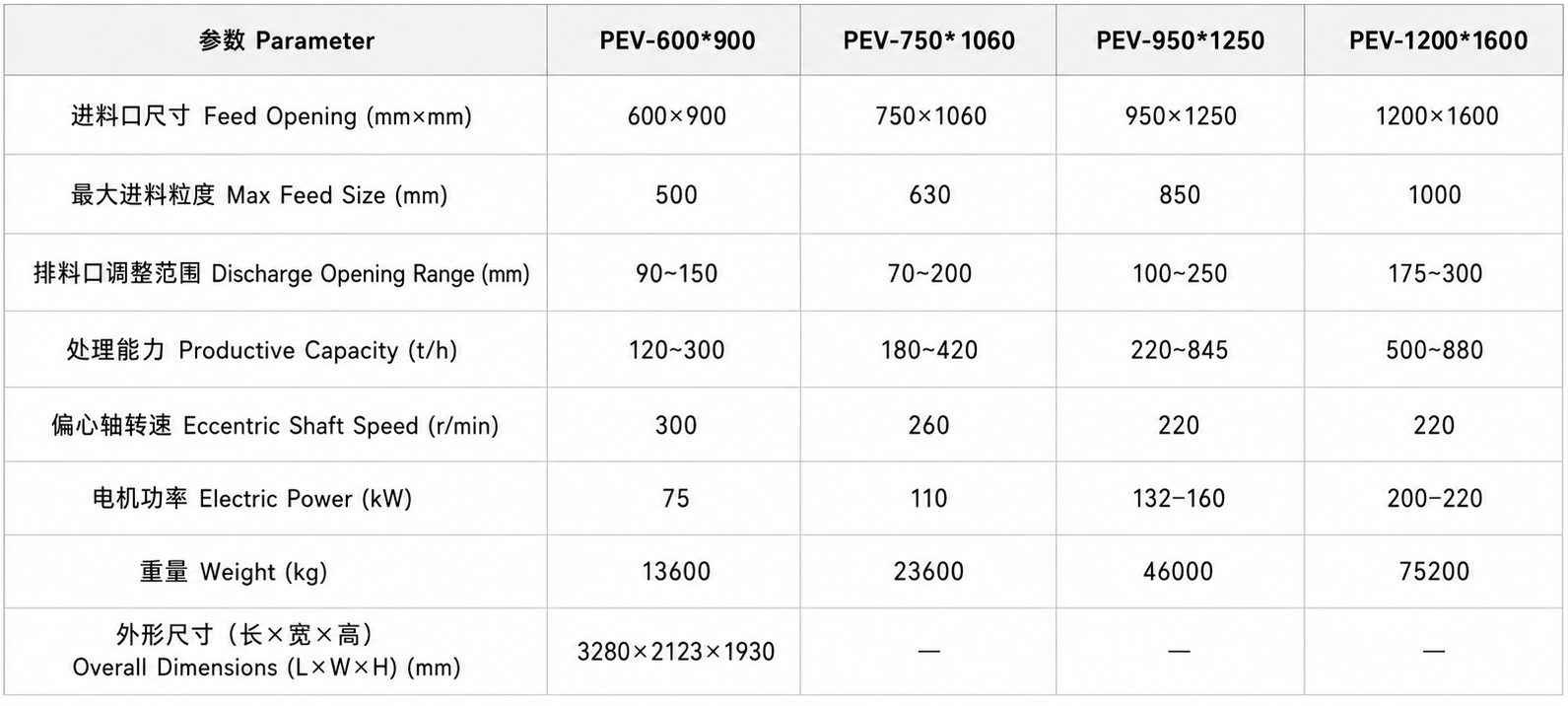

基本技术参数  PRINCIPAL TECHNICAL DATA
型号
Model
进料口尺寸
Feed Opening
(mm×mm)
最大进料粒度
Max feed Size
(mm)
排料口调整范围
Discharge Opening
Range (mm)
处理能力
Productive Capacity
(t/h)
偏心轴转速
Eccentric shaft
Speed (r/min)
电机功率
Electric Power
(kW)
重量
Weight
(kg)
外型尺寸
Overall Dimensions
(mm)
PEV-600×900 600×900 500 90-150 80-200 300 75 13600 3280×2123×1930
PEV-750×1060 750×1060 630 100-160 120-300 260 132 23600 2860×2206×2456
PEV-950×1250 950×1250 850 100-250 180-400 220 132-160 46000 4100×2800×2980
PEV-1200×1400 1200×1400 950 190-300(单调)
95-190(双调)
250-500 185 185 61000 5407×3082×3575
PEV-1200×1600 1200×1600 1000 175-300 450-1000 220 220 75200 5410×3090×3580
注:处理能力与石料的硬度、出料粒度及含水量等有关,以上数据仅供参考,最终以合同为准,解释权为本公司。
变更规格不另预告。
