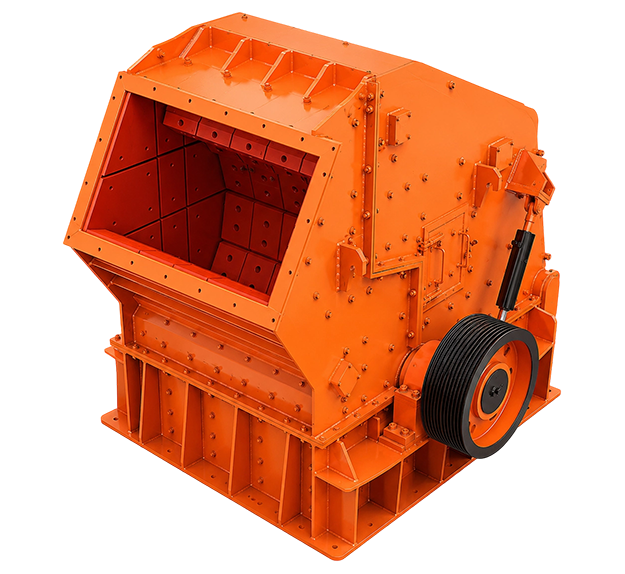

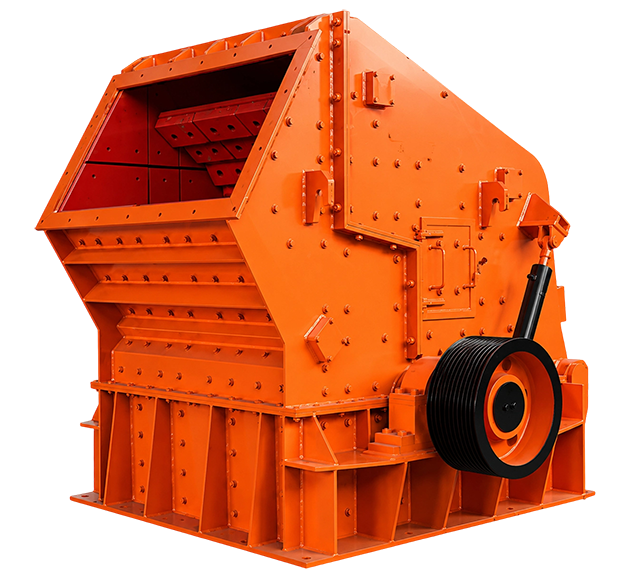

IMPACT CRUSHER
本系列破碎机能处理粒度不大于120-500毫米、抗压强度不超过320兆帕的矿石、岩石，具有破碎比大、破碎效率高、产品形状呈立方体、可选择性破碎等优点。
本系列产品分为采矿、水泥、混凝土工业用三大类，产品适用于供多种抗压强度的矿石破碎使用。
The Yuan Tong Shan Xing Brand impact crusher are designed for crushing ores and rocks withparticle sizes less than 120-500mm and compression strength under 320MPa. It has a feature of bigprimary reduction ratio, high efficiency, cubic shape, selectable crushing and etc, It is suitable forcrushing different compression strength of rocks and is widely used in mining, cement and concreteindustries.

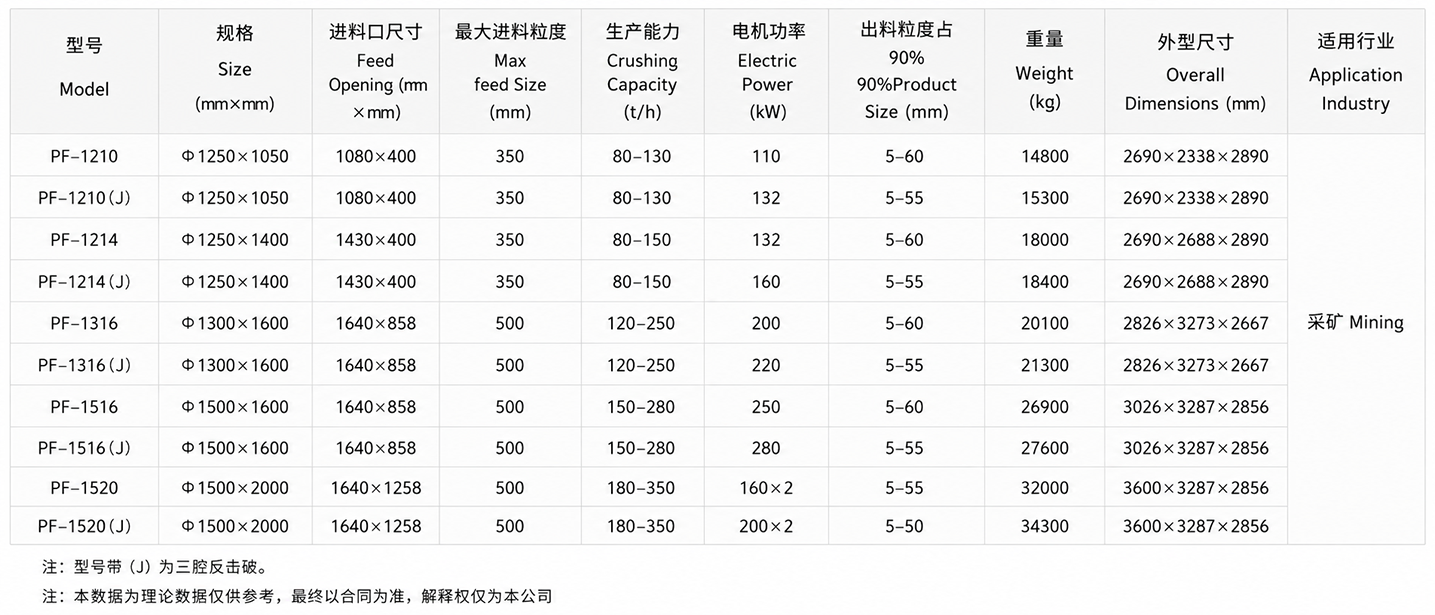

| 基本技术参数 PRINCIPAL TECHNICAL DATA | |||||||||
| 型号 Model |
规格 Size (mm×mm) |
进料口尺寸 Feed Opening (mm×mm) |
最大进料粒度 Max feed Size (mm) |
生产能力 Crushing Capacity (t/h) |
电机功率 Electric Power (kW) |
出料粒度占90% 90% Product Size (mm) |
重量 Weight (kg) |
外型尺寸 Overall Dimensions (mm) |
适用行业 Application Industry |
|---|---|---|---|---|---|---|---|---|---|
| PF-1210 | Φ1250×1050 | 1080×400 | 350 | 80-130 | 110 | 5-60 | 14800 | 2690×2338×2890 | 采矿 Mining |
| PF-1210(J) | Φ1250×1050 | 1080×400 | 350 | 80-130 | 132 | 5-55 | 15300 | 2690×2338×2890 | |
| PF-1214 | Φ1250×1400 | 1430×400 | 350 | 80-150 | 132 | 5-60 | 18000 | 2690×2688×2890 | |
| PF-1214(J) | Φ1250×1400 | 1430×400 | 350 | 80-150 | 160 | 5-55 | 18400 | 2690×2688×2890 | |
| PF-1316 | Φ1300×1600 | 1640×858 | 500 | 120-250 | 200 | 5-60 | 20100 | 2826×3273×2667 | |
| PF-1316(J) | Φ1300×1600 | 1640×858 | 500 | 120-250 | 220 | 5-55 | 21300 | 2826×3273×2667 | |
| PF-1516 | Φ1500×1600 | 1640×858 | 500 | 150-280 | 250 | 5-60 | 26900 | 3026×3287×2856 | |
| PF-1516(J) | Φ1500×1600 | 1640×858 | 500 | 150-280 | 280 | 5-55 | 27600 | 3026×3287×2856 | |
| PF-1520 | Φ1500×2000 | 1640×1258 | 500 | 180-350 | 160×2 | 5-55 | 32000 | 3600×3287×2856 | |
| PF-1520(J) | Φ1500×2000 | 1640×1258 | 500 | 180-350 | 200×2 | 5-50 | 34300 | 3600×3287×2856 | |
| PF-1620 | Φ1612×2000 | 800×2020 | 700 | 400-650 | 500 | 5-50 | 39000 | 3505×3740×3085 | |
